Open ModScan

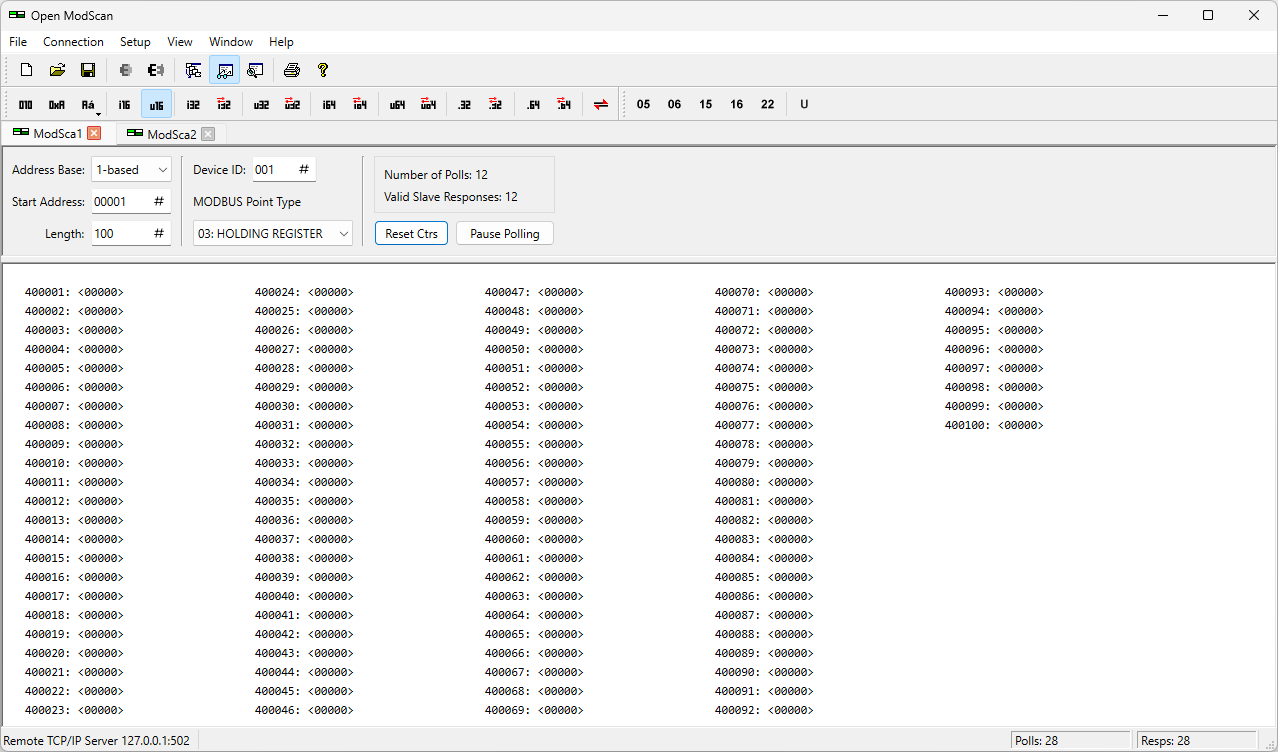

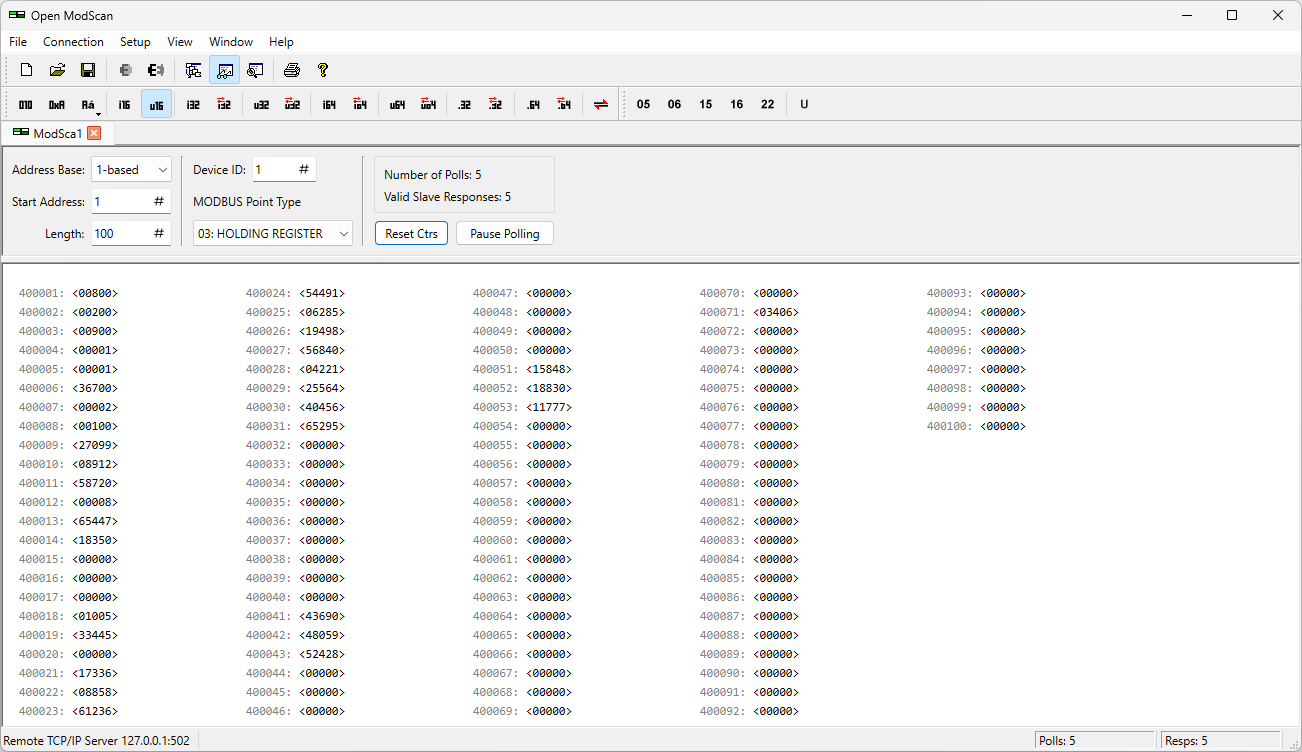

Open ModScan is a free implimentation of modbus master (client) utility for modbus-tcp and modbus-rtu protocols.



Features

The following Modbus functions are available:

Discrete Coils/Flags

0x01 - Read Coils
0x02 - Read Discrete Inputs
0x05 - Write Single Coil
0x0F - Write Multiple Coils

Registers

0x03 - Read Holding Registers
0x04 - Read Input Registers
0x06 - Write Single Register
0x10 - Write Multiple Registers
0x16 - Mask Write Register

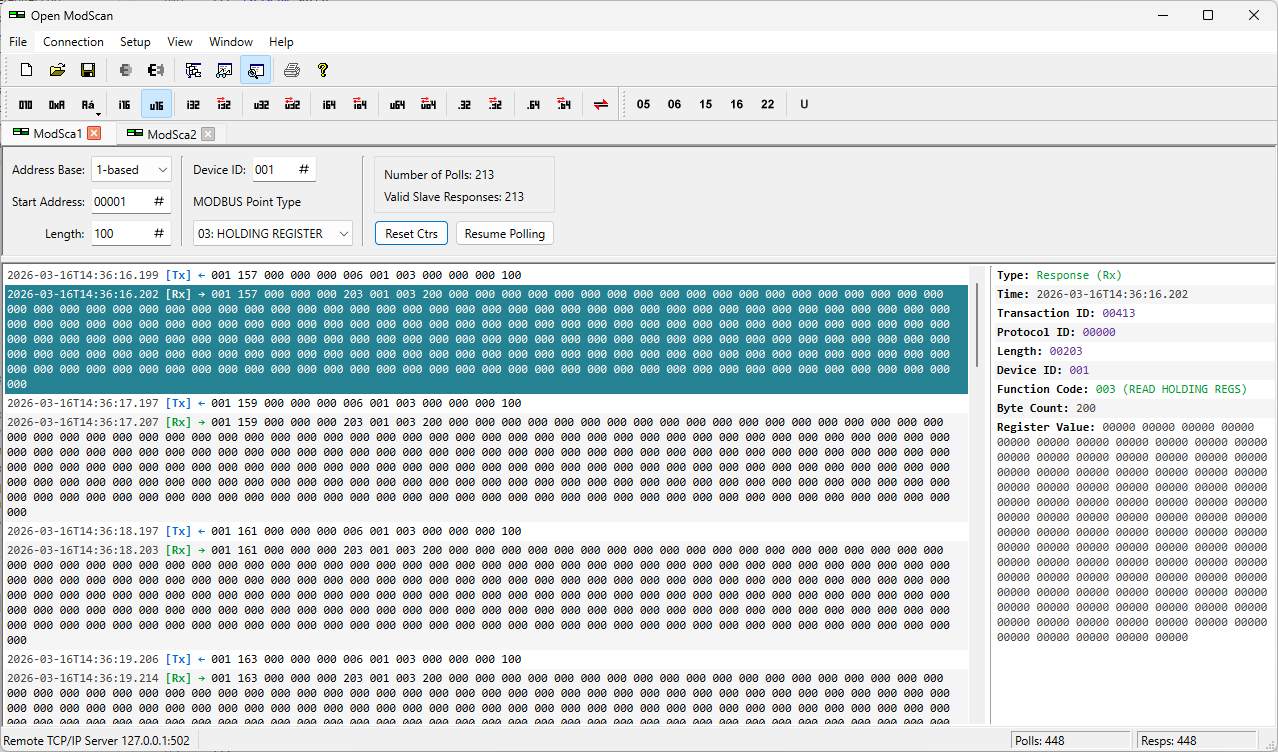

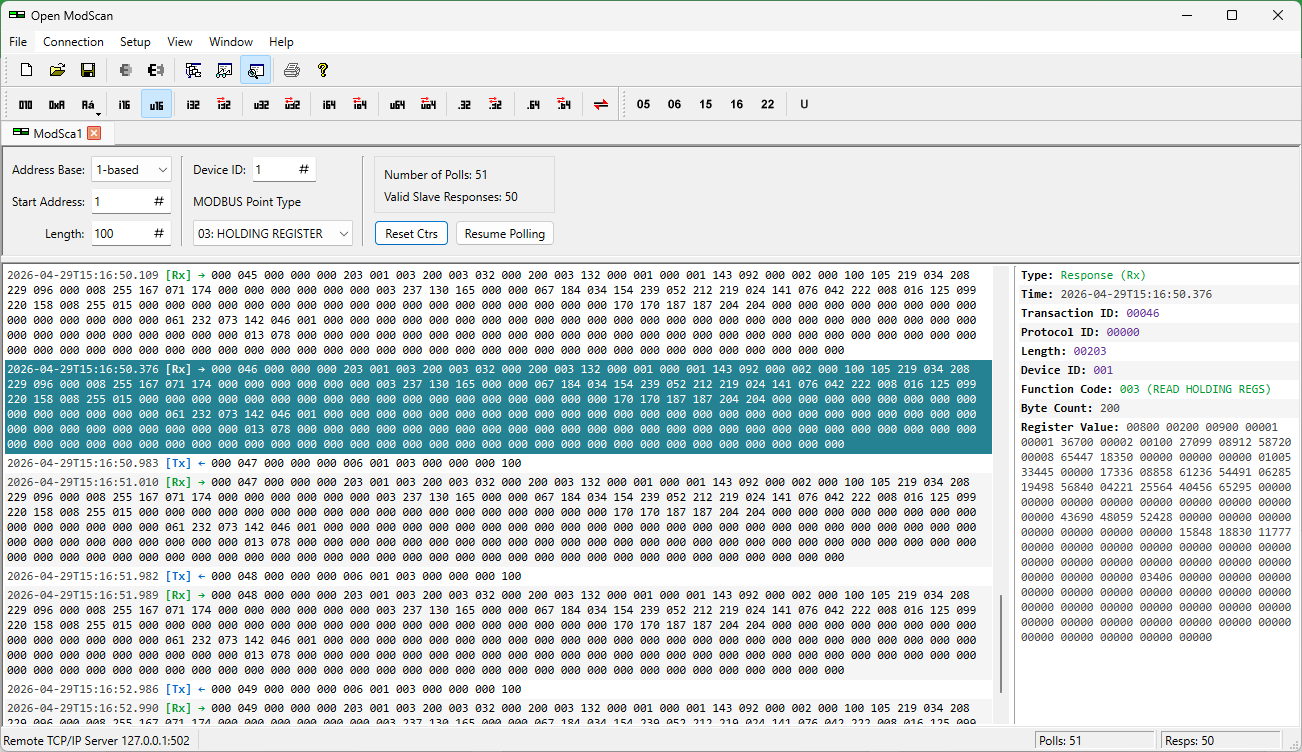

Modbus Logging

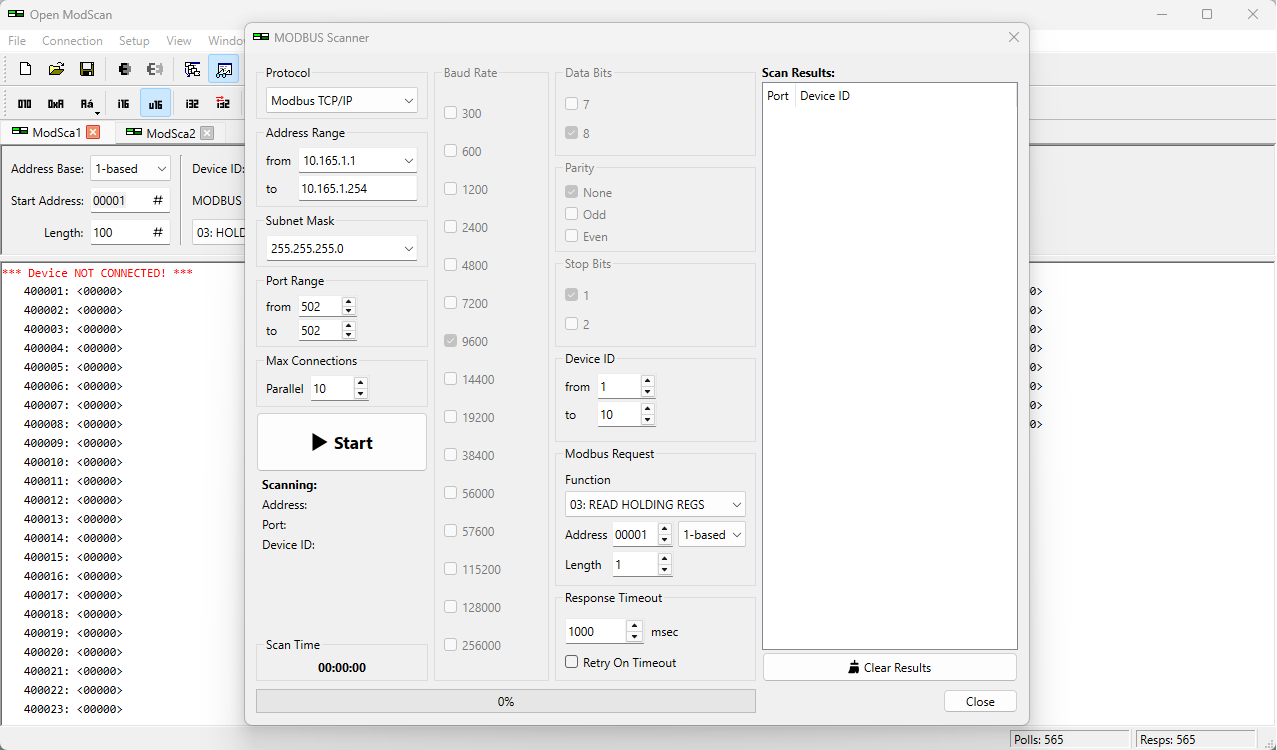

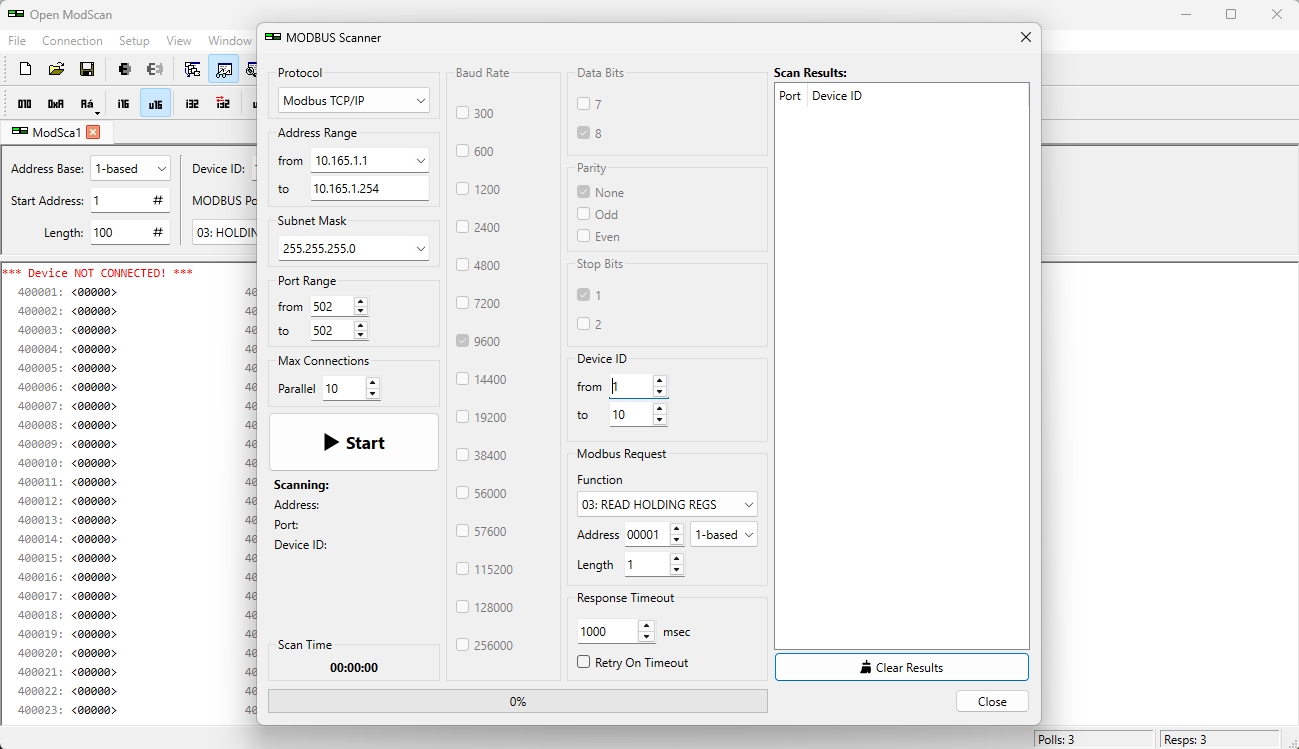

Extended Featues

Building

Now building is available with Qt/qmake (version 5.15 and above) or Qt Creator. Supports both OS Microsoft Windows and Linux.
